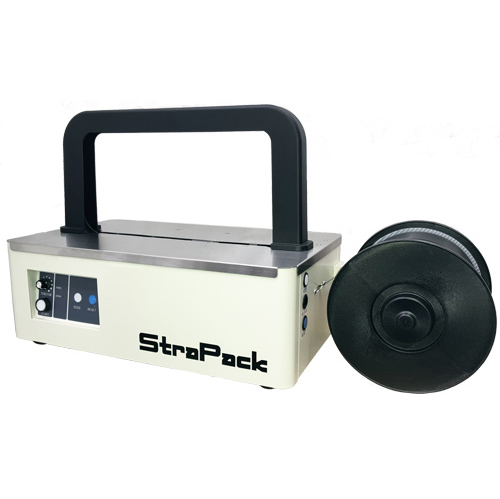

CORATEX ENTERPRISE CO., LTD. » PRODUCT » SPOT-2-AUTO (TINY-R) »

Features

● Machine imported from Japan.
● Desk Top Type, small size occupies small space.
● Resist EMI to protect IC chip fully.
● Resist CDM static electricity to protect IC chip. Machine operates by PLC.
● 「special control by Tension adjust timer」, electronic way to bind up.
● Shortly warming time: Machine is ready to operate within from 30 to 60 seconds after turning switch on.
● Motor is automatically activated before each operation thus saving electricity.
● Odor removable : Bad odor is cleared by deodorizing equipment.
● Heater plate temperature need not be adjusted.
● Tension adjustable: Max 10kgs, with Japanese made Conductive Soft PP Strapping Band & Anti-static P.P. Strapping soft band. Band wont’ break IC Tray.
● Power Consumption 0.35kVA、low sound volume in 70dBA、simply maintenance, and long service life of machine.
● Auto feeding with special backrush strap system to let strap stay in the arch.
● Additional install the customized stopper.

Suitable

Electronics IC Tray、Opto-electronics blister box、panel、PCB and so on……fragile soft products.

Specification

● Tension Strength：10.5+/-1kgs.
● Sealing method：welding by hot plate.
● Strapping speed：19 bundle/Min.
● Power：AC 100V / 110V / Special made 220V、230V、240V 50/60Hz.
● Weight ：23kgs.

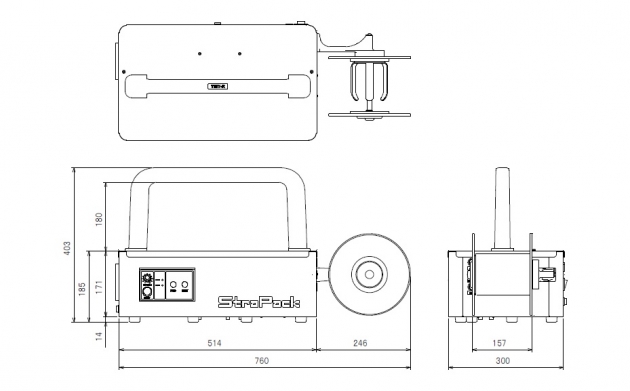

● Arch size：general one.
